CL-RL-045W-A-XX, CL-RL-045W-B-XX 110 - 277VAC 45W 5780LM E39 / E40 /E27 LED Corn Light CRI 80 Replace120W CFL or 150W HPS, 5 years warranty
Features and Benefits:
● 45W LED Corn Light,up to 125LM/W.
● 120-150W HID Replacement Post Top Lamp
● Excellent Material for lighting fixture:
(1)Original Samsung 5630 0.3W LED;
(2)Japanese Rubycon Capacitor for power supply;
(3)Japanese JEA connector,more safer and reliable;
(4)High thermal conductive PCB and 6030 Aluminum heat sink;
● 80% more energy saving compared with traditional lamps.
● More than 1,000,000 times Reliability Test
● With 360 Degree Beam Angle design to make the light radiating uniformly to the ground.
● Can be used in Enclosed Luminaires.
● Easy replacement, LED corn Bulb could directly replace the traditional E40 or E27 Base CFL, HPS, HM in IP65 or IP67 fixtures.
● High CRI Ra>80.
● High Luminous Efficiency, more than 110LM/W.
● Long Lifespan of 10years, with 5Years warranty.
● cETL,UL,DLC,Lightingfacts,TUV,CE,RoHs approved
Technical Specification:
●Power Consumption:45W
●Input Voltage: 100-277VAC, 50/60Hz
●PF>0.95
●Recommended Replaced Lamp:120W CFL,150W HPS
●Light Source: 135pcs Samsung 0.3W 5630 SMD LED or Epistar 2835 SMD LED
●Luminous Flux: 5940LM±5% (5630 LED) , 5700LM±5% (2835 LED) ,
●CCT:WW(3000~3500K), NW(4000-4500K),or CW(6000-6500K)
●CRI:Ra>80
●Beam Angle: 360°
●Lifetime: >35,000Hours
●Base Options: E39,E40 (E26 E27)
●Material: MCPCB+ Aluminum Heatsink
●Transparent Cover for Side LEDs and Bottom LEDs
●Packing: Net Weight 935g/piece, 12pcs/carton,14KGs/carton

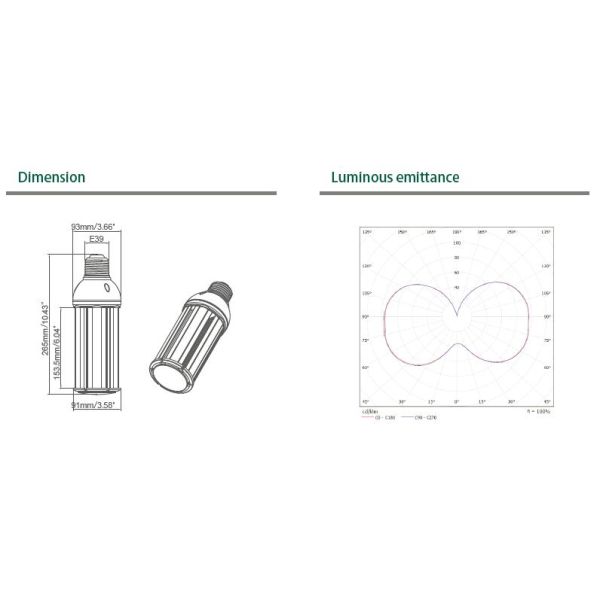

●Size: ¢93*265 MM
●IP Rating:IP64
●Total Harmonic Distortion:≤9 %
●Body Temperature: <55 °C @Ta=25 °C
●Working Humidity:10%-90%
●Storage temperature: -40 to 70°C
●Operating temperature: -10 to 45°C
General Information:
| Part Number | Power
(W) | Input Voltage
(VAC) | CCT
(K) | LED Type | LED Q'ty
(pcs) | CRI
(Ra) | Luminous
Flux(lm) | PF | LED
LM80 | IP
Rating | Warranty |
| CL-RL-045W-A-XX | 45W | AC100-277V,
50-60Hz | 2700-7000K | 0.3W Samsung
5630SMD LED | 135pcs | Ra>80 | 5940lm±5% | >0.9 | Yes | IP64 | 5 Years |
| CL-RL-045W-B-XX | 45W | AC100-277V,
50-60Hz | 2700-7000K | 0.3W Epistar
2835 SMD LED | 135pcs | Ra>80 | 5700lm±5% | >0.9 | Yes | IP64 | 3 Years |
Notes:
1.Colors options: Warm white (WW, 3000~3500K[standard], or 2700-3000K), Neutral White (NW, 4000~4500K, 4800~5300K), Cool White (CW, 6000~6500K);
2.Standard CRI80+ and CRI90+ is optional;
3.Please contact us to get product sepecification.Thanks!
4.Specification and availability are subjected to change without notice
